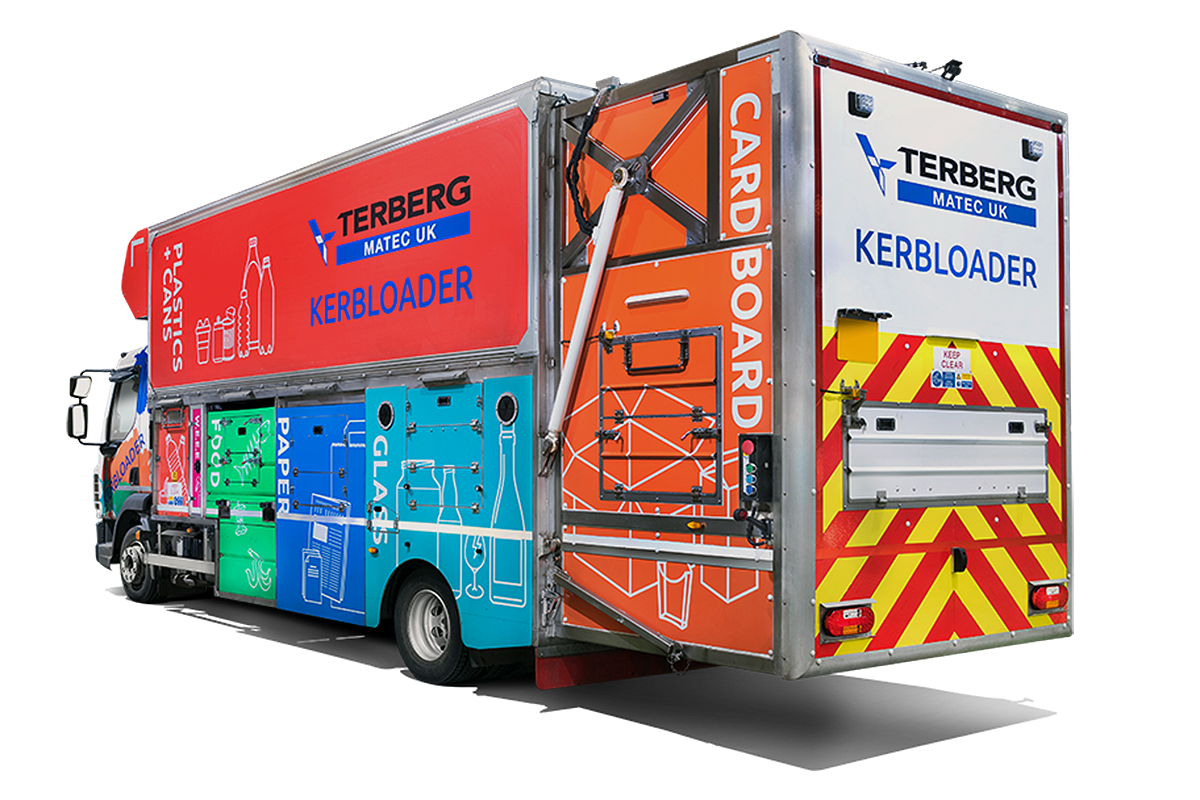

Kerbloader

The Terberg Kerbloader® range is developed specifically for ‘segregated at source’ kerbside collection of dry recyclables and food waste.

Safe and efficient collection of multiple recyclable waste streams is made possible by the combination of a high-level automated plastic/can press system, various removable stillages, a cardboard press unit and various storage compartments.
The Kerbloader Mini has been specifically developed for those harder to access areas. Offering a compact and highly manoeuvrable solution, the Kerbloader Mini is the perfect fit.

Offering standard or narrow width options & capable of collecting up to nine different waste streams, Terberg have an option to meet all your requirements.



Key Features and Benefits;

  • Body volumes ranging from 15m³ to 37.5m³
  • Automatic upper deck plastic and can press system
  • Body panels constructed from lightweight, robust & rust-free composite materials
  • Features removable stillages with loading access from both nearside and offside, giving great flexibility and improved collection efficiencies
  • Bespoke design eliminates cross-contamination of segregated materials
  • Stillages designed to accept food waste, glass and paper recyclable factions
  • Latest technology ’Plug & Play’ components used to ensure reduced risk of vehicle downtime
  • Vehicle height warning signal reducing risk of driving whilst the rear door is raised
  • Simple system isolation eliminates risk of unauthorised operation of the equipment
  • Burst hose protection ensures safety in the event of sudden hydraulic pressure loss
FOOD
WASTE
DRY
RECYLABLES
MULTI
MATERIAL
SPECIFICATIONS

  • Volume: 15 - 37.5m³
  • Wheelbase: 3365 to 5000mm
  • GVW: 7.5 to 12 tonnes
  • Axle Configuration: 4x2
  • Overall Length: 6564 to 9174mm
  • Overall Width: 2130 to 2400mm
  • Compartments: 7 to 9
  • Internal doors: N/A
  • Number of lifts: 1
  • Sound reduction kit: Optional

KERBLOADER® AT WORK

Simple and efficient loading, superb payload for up to 9 different material streams.

The Kerbloader® is delivers impressive performance, safe operation and unmatched elimination of cross-contamination between material streams.




Multi-material collection made easy with simple loading hatches designed to accept food waste, glass and paper recyclable factions.

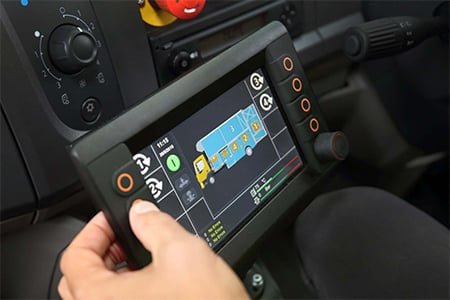

The interactive in-cab control panel gives a great overview of the whole vehicle and offers a safe environment from which to discharge each compartment.

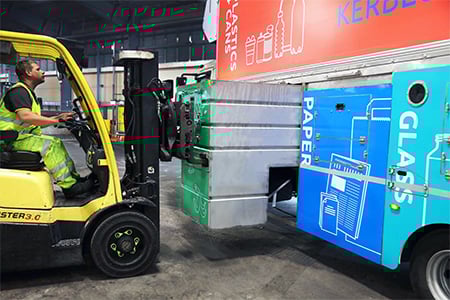

Features removable stillages with loading access from both nearside and offside, giving great flexibility and improved collection efficiencies.







PROVIDING THE UK WASTE AND RECYCLING INDUSTRY WITH ROBUST, RELIABLE, EFFICIENT AND INNOVATIVE ECO-TECHNOLOGY
